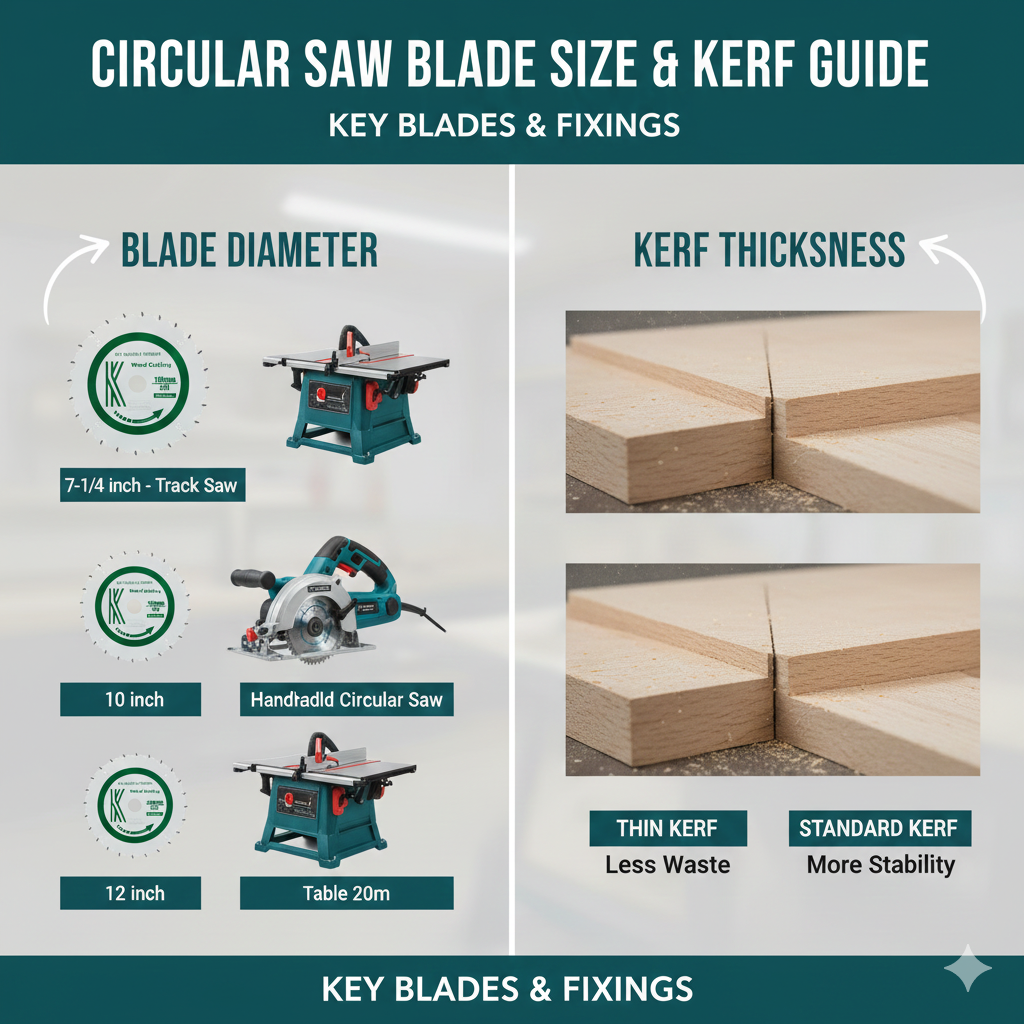

Circular Saw Blade Size and Kerf Guide: What Size Blade Do You Really Need?

Whether you are a seasoned joiner or a dedicated DIY enthusiast, standing in front of a wall of blades can be daunting. With various diameters, bore sizes, and technical terms like "kerf" and "rake" thrown around, it is easy to pick the wrong tool for the job. However, fitting the incorrect Circular Saw Blade isn’t just a matter of poor performance—it can be a significant safety risk.

In this guide, we will demystify blade sizing and specifications, ensuring you invest in the right cutting tool for your machine and your material.

Decoding the Jargon: What "Size" Actually Means

When we talk about the size of a Circular Saw Blade, we aren't just referring to how big the disc is. There are five critical dimensions you need to understand to ensure compatibility and performance:

1. Blade Diameter: The overall width of the blade, usually measured in millimetres (mm). This determines the maximum depth of cut your saw can achieve.
2. Bore Size: The diameter of the hole in the centre of the blade. This must match the arbor (spindle) of your saw perfectly.
3. Kerf: The width of the carbide tip itself. This dictates how much material is removed during the cut.
4. Tooth Count (T): The total number of teeth on the blade. This influences the speed of the cut and the quality of the finish.
5. Tooth Pitch: The distance between the tips of the teeth. Large pitch equates to aggressive removal; small pitch means finer finishes.

Common Blade Sizes for UK Saws

In the UK market, saw sizes have become fairly standardised, though variations exist between brands like Festool, Makita, DeWalt, and Bosch. Here are the most common sizes you will encounter:

• 120mm: Typically found on small, compact trim saws.
• 160mm / 165mm: The standard standard for plunge saws (track saws) and smaller handheld circular saws. This is one of the most popular categories in our Circular Saw Blades range.
• 184mm / 185mm / 190mm (approx. 7 ¼ inch): The classic size for mains-powered handheld circular saws commonly used on building sites for framing.
• 210mm / 216mm: The go-to size for smaller mitre saws (chop saws) and compact table saws.
• 250mm / 254mm / 260mm (10 inch): The industrial standard for site table saws and larger sliding compound mitre saws.
• 305mm (12 inch): Used on large-capacity mitre saws for cutting deep skirting boards and roofing timbers.

How to Match the Blade to Your Saw Model

You cannot simply force any blade onto any saw. Doing so can damage the motor or render the safety guards useless.

1. Diameter is Non-Negotiable (Mostly)

Your saw is designed for a specific blade diameter.

• Too Large: It will catch on the blade guard or internal housing.
• Too Small: You lose cutting depth, and the gap between the blade and the riving knife (a crucial safety feature) becomes too wide, increasing kickback risk.
• Note: You can sometimes safely use a slightly smaller blade (e.g., a 184mm blade on a saw designed for 190mm), provided the riving knife gap remains within safe tolerances (usually less than 5mm), but sticking to the manufacturer's specified diameter is always safer.

2. The Bore must Match the Arbor

The blade must sit tight on the spindle. Common bore sizes in the UK are 20mm (for most handheld/track saws) and 30mm (for table/mitre saws).

• If the blade bore is too small, it won't fit.
• If the blade bore is too big, the blade will spin off-centre, causing violent vibration.
• Tip: You can use reducer rings to fit a 30mm bore blade onto a 20mm spindle, but they must be precision-engineered washers to ensure safety.

3. Maximum RPM

Check the blade’s distinct "Max RPM" rating. It must be higher than the no-load speed of your saw. Using a blade rated for 4,000 RPM on a saw that spins at 5,500 RPM can cause the blade body to distort or teeth to detach.

Kerf: Thin-Kerf vs. Standard-Kerf

One of the most common questions we get regarding Circular Saw Blades is about kerf width.

Thin-Kerf Blades

Designed primarily for cordless power tools. Because the blade is thinner (removing less wood), it creates less resistance.

• Advantages: Extends battery life significantly; puts less strain on the motor; produces less dust.
• Trade-offs: The blade body is thinner, making it slightly more prone to wobbling or overheating if pushed too hard through dense hardwoods.

Standard-Kerf Blades

Thicker plates and wider teeth, typically used on mains-powered (110v/240v) machines.

• Advantages: High stability; runs cooler; less likely to deflect during deep rip cuts.
• Trade-offs: Requires more power; generates more sawdust.

Tooth Count & Configuration

The number of teeth changes the personality of the blade entirely.

• Ripping (Low Tooth Count: 12T - 24T): Designed to cut with the grain. Large gullets (spaces between teeth) clear dust rapidly to prevent burning.
• Crosscutting (High Tooth Count: 40T - 80T): Designed to cut across the grain. More teeth sever fibres cleanly for a smooth edge but cut slower.
• Combination (General Purpose): A middle ground (often 32T - 40T) that rips decently and crosscuts reasonably well.

Tooth Geometry

• ATB (Alternate Top Bevel): Best for natural wood. Slices fibres cleanly.
• TCG (Triple Chip Grind): Best for laminates, plastics, and metals. The teeth alternate between flat and chamfered to chip away brittle materials without cracking them.
• PCD (Polycrystalline Diamond): Essential for abrasive materials like cement fibre board.

Use-Case Table: Selecting the Right Specs

Use this quick reference to match your project to the correct specs found in our Circular Saw Blades catalogue.

Safety & Performance Implications of the Wrong Size

Using an incorrect Circular Saw Blade isn't just about getting a rough cut—it can be dangerous.

1. Kickback: If a blade is too thin for the riving knife on a table saw, the wood can pinch the back of the blade, launching the workpiece back at the operator.
2. Guard Failure: If a blade is too small, the automatic guard on a handheld saw may not retract or deploy correctly, exposing the teeth.
3. Overheating: Using a high-tooth crosscut blade for ripping thick timber causes friction. This heat can warp the blade plate (making it permanently wobbly) and burn out your saw's motor.

Practical Checklist Before Ordering a Blade

Before you hit "Add to Cart", grab your saw or your old blade and check these four things:

1. Check the Diameter: e.g., 160mm.
2. Check the Bore: e.g., 20mm. (Do you need a reducer ring?)
3. Check the Purpose: Are you ripping oak or cutting melamine? (Determines tooth count).
4. Check the Machine Type: Is it cordless? (Ideally choose Thin-Kerf). Is it a mitre saw? (Ensure the blade has a 0° or negative hook angle for safety).

By taking a moment to verify these specs, you ensure better finishes, longer blade life, and a safer working environment.
